Clean up a .CSV file with Regular Expressions, Pandas, and Python
Skip this and Take me to the ReGular Expression and Python Code

Skip even further for a simpler solution that doesn’t involve Regular Expressions

Let us begin

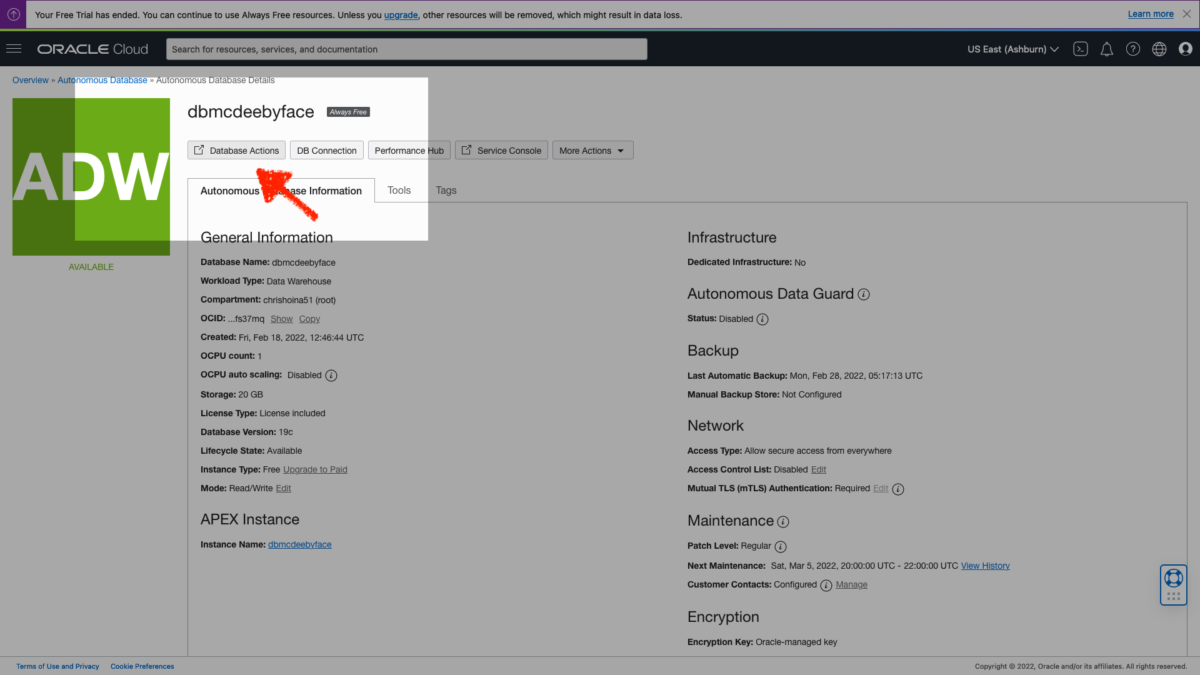

I log into Database Actions as my newly created “Python Developer” and navigate directly to the “Data Load” page (found under the Data Tools section of the Launchpad). I choose to “Load Data” from a “Local File.” I click “next,” click the pencil icon (see the arrow in the image), and navigate to the “File” tab. I scroll to the “RESTAURANTOPENDATE” column and see this:

In a previous post (if you’re new, you can read the end-to-end process), I discussed how this time (“04:00:00+00” or “05:00:00+00”) wasn’t necessary for me. At that time, I used the “Find and Replace” function in Excel (I’m sure you can do the same with Numbers, Sheets, or Calc) to replace all occurrences of time with “” (i.e., nothing).

But in the spirit of doing things in five days, when they could have taken but five minutes, I opted to see if I could achieve a similar result in python.

Goal

Create a python script that will allow you to remove part of a value in a .CSV file.
```
WARNING: I thought this would be a simple task. I should have known better. My approach may not be ideal for your situation, but hopefully you’ll learn something. Or at the very least maybe you can bookmark this post, along with the resources (at the end of the post) I'm including for later use.
```
Regular Expressions

I am confident there is a way to achieve this goal with the .CSV library in python. There is probably a way to do this with python out of the box. I couldn’t figure it out.

I’m also reasonably confident that my approach is on the verge of ridiculous. Nevertheless, Regular Expressions, and the Pandas library, in python are what worked for me.

What are Regular Expressions?

Good question. I still don’t know, but here is what I found on Wikipedia:

“A regular expression (shortened as regex or regexp; also referred to as rational expression) is a sequence of characters that specifies a search pattern in text. Usually, such patterns are used by string-searching algorithms for “find” or “find and replace” operations on strings, or for input validation. It is a technique developed in theoretical computer science and formal language theory.”

That is so painful to read, but the way I understand it is that we use Regular Expressions in pattern-matching. Essentially you create a pattern and then tell your application (or script) to search for it. From there, you can include more code to perform more actions. In my case, those actions would be to find a pattern and replace that pattern with nothing.

So what is the pattern?

One of the benefits of having zero formal training in application development (in this case, computer science and formal language theory) is that occasionally, you might take an approach that, while unintuitive, works well enough.

And after many, many hours of trial and error, parsing through Stack Overflow, reviewing hours of YouTube, reading pages of blogs, and occasional use of the “I’m Feeling Lucky” button on Google, it occurred to me that my pattern was:

After reviewing more documentation and other various resources (I have an entire section at the end), I more clearly identified a pattern:

Coming up with a clearly-defined pattern helped inform me as to how I could create the following Regular Expression:
```
'\s\d+:\d+:\d+[^a-c6]\d+$'
```
I then did some more stuff, and that was it! Follow me for more…

I’m kidding.

Deep Dive

I can’t teach you everything, because I’m probably only ahead of you by a week at this point. But I can explain, in the hopes that it will make sense. Let me continue with the above Regular Expression (again, you’ll want to spend some time in the resources section I’ve included to understand better how this all fits together).

But the above Regular Expression can be defined like this:

I then took the above and plugged it into this nine (12 with sections, slightly more with comments) line script:
```
from pickle import NONE, TRUE
#This doesn't seem work without pickle, still not sure why
import pandas as pd
#You need this to do anything related to dataframes (i.e. "df");
# if you're a data scientist and you use python, you may already
# be familiar with this
import re
#You need this for Regular Expressions to work

d = '/Users/choina/Documents/untitled folder/Restaurants_in_Wake_County.csv'
#I'm assigning the file to "d"
df = pd.read_csv(d)
#df means dataframe. Here I'm telling panda to read the .CSV file
# that I just created ("d"), and consider that the "dataframe".

print(df.dtypes)
#This is optional, but when I do this I can see what the various
# datatypes are (according to pandas). The RESTAURANTOPENDATE column
# is an 'object'.
for RESTAURANTOPENDATE in df:
    df['RESTAURANTOPENDATE'] = df['RESTAURANTOPENDATE'].str.replace('\s\d+:\d+:\d+[^a-c6]\d+$', '', regex=TRUE)
#This is a "For Loop" that says set the RESTAURANTOPENDATE column
# contents equal to the following: FIRST, consider the values in the
# column as string and replace the contents using this process:
# find a pattern that matches this Regular Expression, replace
# it with NOTHING, then take that column,along with the other
# columns and...
df.to_csv('newrest.csv')
#Save it to a new .CSV file called "newrest.csv"
```
Code as an image for reference:

In short, (I’ve left detailed comments for reference), these nine lines of code search for a pattern and replace it with nothing when found. We then take these results (including the rest of the .CSV file) and save them to a new file called “newrest.csv.”

Please, reference this script. Tweak it as needed. Or drop me a note if you need an outside perspective. Good luck!

One more thing

Pickle, Pandas, and RE are all required for this script to work.
```
Note: While I understand Pickle is a library that deals with the serialization of objects in python. I've no idea what that means, and reading about it makes my brain melt. Additionally, I’m not sure if this is expected behavior, but when I ran an earlier version of this script, this "Pickles" library just appeared at the very top. If this has happened to you, please leave a comment, because I'm scared there may be an actual ghost in my machine.
```
Moving on

The rest is pretty straightforward.

I then went back into Database Actions (it had been so long that I’d expected a new version had been released already), loaded my data, and inspected the column in question:

Looks good to me!

Magic

Something I noticed was that my Autonomous Database automatically recognizes the “RESTAURANTOPENDATE” column as a data type of “Date.” I didn’t have to do anything special here, and I thought this was pretty cool. Take a look:

Addendum to the addendum

Once imported, you can also use Regular Expressions in your database (with SQL). But if you’d like to clean your data before it reaches your ADB, the approach I’m writing about here is also a great option!

Resources

As promised, here are all the resources I’ve curated that might assist you should you choose to take the road less traveled…
- Important/relevant documentation:
  - Pickle
  - Regular Expressions
  - Pandas

    Related to this post, there are specific pages that were a huge help. Specifically:

    Remove a suffix in a string

    Replace a string in a series

    lstrip (remove leading characters) a string

    strip (remove leading and trailing characters) a string

    Discover/better understand your dataframe’s attributes and characteristics

    Iteration in Pandas

    Replace values in a series (aka column in Pandas)
- Stack Oveflow – this is a series of “bookmarked” questions about Python and Regular Expressions, that helped me. They might be of use. They aren’t intended to teach you, but rather aide you in gaining a better perspective.
- YouTube – a playlist I created that might be worth reviewing (at a minimum watch Case Digital’s “How to Remove Characters From a Pandas Dataframe In Python” video).
- Regular Expression Editors:
  - Pythex (make sure you click the “Regular expression cheatsheet” button to expand/see a valuable quick reference – also, apparently a more complete version can be found here)
  - Regular Expressions 101 – this includes an enormous library of previously created Regular Expressions. There is a “debugger” too!
An even simpler solution

I discovered an even simpler solution to this problem. As I was reviewing the Pandas documentation I noticed there was functionality built directly into Pandas. This can be done with the “datatime” function.

And you can take it one step further with what is referred to as a “.dt accessor.” (you’ll see this in the updated code I’m including). This accessor allows you to manipulate a Series (aka a column) within a Pandas dataframe (df).

There are quite a few time-date properties you can manipulate in Pandas, all of which can be found here. The “Time Zone Operations” section is where the “.dt accessor”, is briefly mentioned. For more context, I’d recommend reviewing this section on the .dt accessor and how they interplay with a Pandas Series.

Don’t stop there though, the main python documentation discusses the basics of date and time operations. Without further ado, on to the new code:
```
import pandas as pd
import numpy as np

#You don't have to do it like this. You could have a single "d" and then just comment/uncomment each line as needed.

d1 = '/Users/choina/Downloads/Food_Inspections.csv'
d2 = '/Users/choina/Downloads/Food_Inspection_Violations copy.csv'
d3 = '/Users/choina/Downloads/Restaurants_in_Wake_County copy.csv'

#The same thing here, you could just have a single "d" and then just comment out the other two, when not needed.

df_1 = pd.read_csv(d1)
df_2 = pd.read_csv(d2)
df_3 = pd.read_csv(d3)

#Same goes for this too. This is either very slick of me, or incredibly lazy.

df_1['DATE_'] = pd.to_datetime(df_1['DATE_']).dt.date
df_2['INSPECTDATE'] = pd.to_datetime(df_2['INSPECTDATE']).dt.date
df_3['RESTAURANTOPENDATE'] = pd.to_datetime(df_3['RESTAURANTOPENDATE']).dt.date

#Same, same here as well. You could do one at a time. But it works, I double-checked my work.

df_1.to_csv('newninspect.csv')
df_2.to_csv('newviolate.csv')
df_3.to_csv('newrest.csv')
```
About the update

This code is certified fresh – meaning, it works. I triple-checked. The only thing I’ve noticed is that lines 12-14 must-have “.dt.date” at the end. From what I am reading (and am inferring from the documentation), it looks as though you need to first “treat” the Series with the “to_datatime” function. After that, the entire dataframe is in limbo (not quite written out to a new .CSV), waiting. Before the next step, we can strip the time portion out using the .dt accessor (i.e. the “.dt.date” portion located at the end of lines 12-14).

From there it is simply a matter of writing out these updated dataframes to the three new expectant .CSV files.

Find Me

Please come back for more. I’m going to be working on views in my Autonomous Database, and then later, I’ll REST-enable them with the help of ORDS!
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
April 18, 2022
GET requests with Python, ORDS, and the Oracle Autonomous Database
Problem

I wanted to take the Objects,

Objects

In my Admin schema and copy them into a newly created Python Developer database user/schema. I have been meaning to do this for a while now since I’d to approach all future development work as a typical [developer] user might.

I previously created a “developer” user, but the recommendation was to create a user specifically for python development. This recommendation makes sense because I’d like to explore other developer frameworks — JavaScript/React, Derelicte, Golang, Hoobastank, Swift, Smashmouth.
```
DISCLAIMER: Some of the aforementioned languages/frameworks are entirely fictional.
```
So in creating this user and populating the schema, I could have just copied these objects over in seconds. I’m sure some already existing would have enabled me to do this. A less-elegant option would be to do a local upload. I’m confident I could export the tables of my Admin schema and then upload them as a developer in Database Actions. Doing so here:

But those options were too straightforward, effortless, and expeditious. I needed an approach that would make me question my life decisions. Something that would force me to rethink what it meant to be human.

Mostly, I wanted an excuse to tinker with ORDS some more. While I didn’t start with a well-defined use case, I was able to retcon (a portmanteau of the words retroactive and continuity) one.

Scenario

The scenario is that we have REST-enabled schema objects (in this case, various tables), and maybe we want to execute GET requests on that table. Perhaps we want all the data from that table (having been returned in JSON). And for whatever reason, we want to save this information in a JSON file. Plausible? Not likely. Possible? If I can do it, then yes, 100% possible.

Solution
```
NOTE: I've since disabled REST for these tables. So none of these URLs currently work. Also for security reasons you probably want to a require authentication to access these. The below screenshots and code snippets are for demonstration purposes.  In this case, probably acceptable, but please (PLEASE) exercise caution if you are recreating at your workplace.
```
REST-enabling

When you REST-enable a table, you’re provided a URL (aka a REST Endpoint) for viewing. It will look something like this:
```
https://gf641ea24ecc468-dbmcdeebyface.adb.us-ashburn-1.oraclecloudapps.com/ords/admin/scores/
```
The response looks like this:

You are seeing the first 25 results from my “Scores” table. I’ve also created an alias name for that table as an extra level of protection. The table’s actual name is not “Scores,” but rather something else.

If you collapse the “items,” it’s easier to see the rest of the “name: value” pairs:

I can do my best to explain what we see here:
- ‘items: […]” are the individual entries in my table (the columns would be the items you see in the black bold). ORDS includes links for calling that single entry only
- ‘hasMore”: true,” essentially means that there are more pages with information to follow
- “limit: 25” refers to the fact that ORDS is only returning 25 results at a time. I didn’t set this; it was the default.
- “offset: 0” this is tricky. From what I can tell, the offset only becomes a consideration after the first page. You begin with no offset (this makes no sense, I know, but I will explain this shortly)
- “count: 25” – we have entries 1-25 on this page
- “links: […]” these are all pretty self-explanatory. Two links, in particular, are pretty interesting. They are:
  - “describedby” and
  - “next”
If I click the “describedby” link, you’ll see something that looks like this:

On this page, you can review valuable information without ever logging into Database Actions. I found this extremely helpful; from here, I could see the table name, Primary Key (if it exists), and the column names and types for the table.

Another link I wanted to highlight was “next.” If you look closely, you’ll see that the “next” URL includes an offset of zero:

However, if I click that URL (I’ve collapsed all the items on this page as well), I can see that “offset” has increased to 25, and the new “next” URL shows “offset=50”. This next part will do a better job of explaining what is happening.

Since we are on the second page of results, ORDS knows that we began with an offset of zero (the beginning of the table) and a limit of 25. Each “next” URL will increment by 25 (the offset) and return 25 results at a time. And it will keep producing “next” URLs until the “hasMore: false” condition is finally satisfied. We can modify a lot of this, but this is what ORDS does for you automatically/by default. Great news for me because at my current level of experience, the more steps that I can automate, the better!

Python

Prepare yourself for a bit of a leap. At this point, I was pretty confident I could copy/paste my way through some python code and pull down this data, and then save it in some format.

Finally, after about a week, I was able to duct-tape something together. Courtesy of Google, StackOverflow, so many YouTube video tutorials (so, so many), here is what I’ve arrived at:
```
import requests
import json

# requests is a python library that allows you to send GET,
# PUT, DELETE, HEAD, and OPTIONS requests. I'm just doing
# GET requests though. The json library comes with python,
# but I need it here to be able to work with the json that # is returned. I'll also need it to create the json file
# (at the end).

offset = 0

# I'm basically telling this little script that we should
# expect to start with an offset of zero. If you recall,
# this just means we are beginning on the first page.
# Hence, there is no offset.

url = 'https://gf641ea24ecc468-dbmcdeebyface.adb.us-ashburn-1.oraclecloudapps.com/ords/admin/places/?offset={}'

# I've added in this modifier {}, which, as you'll see in a # bit, allows me to increment by 25 with each subsequent
# GET request.

hasMore = True

# Read this as "hasMore is equal to True". In other words,
# if there is more STUFF, then we should see "true" (go
# back and look at the screenshots if you don't know what
# this means.)

while hasMore:

# We are saying, "While 'hasMore is equal to true, then..."

response = requests.get(url.format(offset))

#...recognize that "response" is a GET request that
# consists of the URL (from above) plus whatever the offset # is (we'll indicate the offset below).

data = response.json()

#data is just whatever the results are from the above
# response.

filename = 'places.json'

# "filename" is the json file we are going to create to
# put all these results into.

if data.get('hasMore'):
     offset += 25
     with open(filename, 'a') as json_file:
          json.dump(data, json_file)
else:
     break

# I'm going to switch to narrating here, this one is just
# too verbose. In lay terms, we are saying: if the GET
# request "data" (which is essentially a composite variable # at this point) has "hasMore: true" on the page, then keep # doing this next thing.

# With the next "thing" being: take the results from that
# URL and save it into a file called "places.json". Once
# you've done that, keep doing it, but add 25 to the offset # for that URL for subsequent GET requests. And whenever
# you have results, append it (that's what that "a" is on
# line 44) to the file you created, and just keep going
# until "hasMore" doesn't satisfy that condition on line
# 20.

# If it doesn't satisfy that condition then that means
# "hasMore" is equal to false. In other words, there is
# nothing more to request, so stop (that is what the "else: # break" means).
```
I’m going to include an image to see the nesting better.

And once I run this, I’m left with a JSON file (“places.json”) that has all my entries saved à la:

Now what?

At this point, I have a few options. I could:
- include code that would convert this JSON file to a . CSV file
- include code to indent the JSON file, making it more readable, or
- drag and drop it into my Autonomous Database (via Data Load in Database Actions) with some slight tweaking (I just tried, so I already know I need to do more massaging)
The End

So what have we learned here? Even somebody with very basic skills can interact with an Autonomous Database via ORDS.

If you have an internet connection and are eager enough, the sky is the limit. Putting things into perspective, I wouldn’t have been able to do this about a week and a half ago.

Truthfully, you’re not that far behind! I encourage you to give it a go.

Find me
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
April 8, 2022
Updating VARCHAR2 fields in Oracle Database Actions
Skip to the Abridged Walk-Through

Update

I’ve run into more problems with this python/flask/ords/adb app idea of mine. Turns out I’m too [developer] dumb to do some of the things that I’d originally envisioned. Now that I’ve become more familiar with python, flask, the Oracle Autonomous Database, and our Database Tools (like ORDS and Database Actions), I’m realizing that I need to rethink my approach.

First off, I’ve updated the (not trying to be pretentious here) User Journey for this project.
```
SIDE NOTE: The User Journey is something that I really should pay more attention to (especially considering it was one of my concentrations in my MBA program, and it was a huge initiative in my previous role at Big Blue) and you should too!
```
Ch-ch-ch-ch-changes

I’m leaning towards (after a recent discussion with that jeff smith) more of a drop-down style of search. I’d like to present a user with all the available cities (having taken these from my “Restaurants” table) in Wake County.

I think I can populate a list of cities to choose from with the help of REST APIs (via ORDS). But I need to do some clean-up first.

Side note

In about a minute, you’ll probably come to the realization that my approach is less than elegant. Remember, I’m not a developer. I’m kind of stumbling through this, and I’ll need to make some sacrifices along the way (we call those “trade-offs” in business-speak). Unfortunately, there are simply some techniques/skills that I do not know yet. For a visual representation of these deficits, I draw your attention to:

Back to your regularly scheduled program

On to clean-up. The cities in this table are a bit all over the place. Let’s take a look.

From Database Actions, I can navigate to a SQL Worksheet. From there I can inspect my tables (Right-click > Edit), or jump straight into the SQL. Since I know my “CITIES” column is the problem, I’ll run this:
```
SELECT DISTINCT CITY
FROM ADMIN.RESTAURANTS
ORDER BY 1
```
Some screenshots of what this looks like in Database Actions:

The SQL query used only returned the unique strings.
```
NOTE: The "DISTINCT" parameter drops any duplicates, "ORDER BY" returns results in ascending order.
```
I suspect that the program used to input health inspections allows for some level of free text.

Tangent / Story

I’ve used an application similar to this in a previous life, but it was a Computer Aided Dispatch (CAD) application. You could enter in free-text, or select from users’ previous entries. There was a lot of flexibility, but because of that, there were many variations on things like street names, cities, locations, parking lots, person names, etc. For the user, awesome, for the developer or database administrator, less so.

At this point, it is pretty clear the amount of normalization I’ll have to do to all these city names. Now I just need to figure out:
- case to use (Upper, Sentence, Lower, SaRCaSTic, etc.)
- city name variations to use
I randomly chose a city with the following SQL command:
```
UPDATE Restaurants SET CITY = 'Holly Springs'
WHERE UPPER(CITY) = 'HOLLY SPRING'
```
In this example, I searched for all instances of “Holly Spring” and replaced them with the correct “Holly Springs”. I can then repeat the process for all other cities. Again, the abridged walk-through of this is here.

I actually know this data well, since I grew up in the area. So deciding on the correct city names shouldn’t be too challenging. But familiarizing yourself with your own data might not be such a bad idea. For instance, in this table, one of the cities displays as “Research Triangle Park”. I don’t think it’s common to refer to it like this; we usually just call it “RTP”. I think little details like that really help to elevate your application.

Next steps

I’ll keep this brief. But what I think I’m going to have to do next is create a REST API based on this Restaurant table. I should have a better idea in a few days. But the idea is, that once a user selects a city, it will pass that city as a parameter to a GET request (again, courtesy of ORDS) and then return additional data. A user would then be able to further filter on that returned data, eventually ending on their target restaurant.

Okay, stay tuned…as I feel like I’m on the precipice of something exciting!

Catch me if you can
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
Abridged walk-through
From Database Actions, navigate to the “SQL” feature. You’ll see this screen appear.

NOTE: I had a previous SQL Worksheet saved, but you can enter SQL statements directly into the default worksheet.
*If you expand, you can see the statement that I used.

SELECT DISTINCT CITY FROM ADMIN.RESTAURANTS ORDER BY 1

This will produce a list of all the cities in their current form. Notice the four different variations of “Fuquay-Varina”.
I’ll comment out lines 1-3 and enter the following SQL statement to update Fuquay-Varina:

UPDATE Admin.Restaurants SET CITY = 'Fuquay-Varina' WHERE UPPER(CITY) = 'FUQUAY VARINA'

I use the “DISTINCT” parameter to drop any duplicates in the results. “ORDER BY” returns results in ascending order.

You’ll see that 77 rows have been updated.
I’ll un-comment lines 1-3, and comment lines 5-6.

Based on the results, we’ve reduced the variations of “Fuquay-Varina”. I’ll continue this work until I have a smaller set of more consistent cities.
April 4, 2022
Add Primary and Foreign Keys to your Oracle Autonomous Database
Skip this and Just take me to the Walk-through!

I’m not a Database Administrator, but I feel as though I may be slowly evolving into one…

In a previous post, I left myself the task of correcting the html on a proposed Python/Flask/ORDS/Autonomous Database application. My then next step was to add a search bar (which I did):

Search bar added to the html for searching my Autonomous Database.

Although this was a small step forward it led to some serious questions. While having a search feature like this is good in theory, in practice it is totally unusable.

The Problem

If a user wants to search for a specific restaurant, they’d need to know a lot of information beforehand. At a minimum, the name of their target restaurant. But even that isn’t enough. Look at when I query for a single restaurant (randomly chosen – I’m not sponsored by Wendy’s btw):

SQL statement and the output (a single restaurant in this case).

Some of these restaurants come back with additional store numbers (probably a reference to either a corporate- or franchise-owned property). So a search like this simply will not do.

That’s problem number one. The second problem is that in the original datasets, while HSISID and Permit ID (read about them here) are unique in the Restaurants table. That isn’t the case with the Violations and Inspections tables. There are a TON of entries for each restaurant in these tables, and the HSISID and Permit IDs are used repeatedly for subsequent inspections. Just take a look at this example (they’re all like that though!):

Using the HSISID over and over again make it challenging to gather necessary information across all tables.

A Closer look

Above, is the Violations table, but the Inspection table looks similar. From what I observer, each time a violation or inspection is recorded that same HSISID is used (Permit IDs too). But in these two tables an Entry ID is used as the unique identifier. I know the image is greyed out, but if you look closely you can see the “Object ID” in that screenshot.

But these Object IDs don’t mean anything outside of this table. And it underscores the point that my original approach to searching (i.e search bar) using a single identifier won’t work. Across the three tables these restaurants are uniquely identified in different ways.

At a minimum, these tables should be linked so that when an HSISID is searched for in the Restaurant table, it gathers all associated data from the Violations and Inspections table too. Meaning, if I search for a specific “Wendy’s” only that target restaurant comes back along with all historical inspection and inspection violation information as well.

Now that we understand the problem, I’ll attempt a solution. For my next feat, I’ll relate the three tables to one another in a logical way. Continue on dear reader…

Navigating

Navigate to your Autonomous Database, then Database Actions. Once there, look under the “Development” section, and choose “SQL”.
```
NOTE: I'm sure there are other ways to accomplish this, but this is what worked for me.
```
Once in that SQL Worksheet, look at the the left side of your browser, you’ll see the Navigator tab. Of the two drop-down lists, look at the second one. That is the “Object” selector; for my purposes I made sure that Tables was selected.

Navigator tab in Oracle Database Actions in my Autonomous Database Always Free OCI account.

I have the three tables; two of which (Inspections and Violations) need Foreign Keys while the third table (Restaurants) will need a Primary Key.

My three tables in Oracle Database Actions: Inspections, Restaurants, Violations
```
TL;DR - The Restaurant table is like my Parent table, whereas the other two tables are like children (or dependents). Establishing these Primary and Foreign keys is a way for me to easily establish interdependence/relation among these three tables.
```
Establishing a Primary Key

I’ll use the Restaurant table as an example. Here is the step-by-step…

Right-click on the table (Restaurants), then select “Edit”.

If a Primary Key has already been established, then you’ll see a Column (which is actually displayed as a row in this Table Properties table) that already has a check in the “PK” column.

If there isn’t one, continue by clicking the Primary Key option (see the left-most red arrow).
Once in the Primary key option, you’ll see the following boxes with checks:

Enabled

Initially Immediate,

Validate
I’m using the HSISID (found in the “Available Columns” list) as my Primary Key. Once I select that, the “Add Selected Columns” arrow will illuminate (from white to gray). Click it once to move your selection over to the right in the “Selected Columns” list.

Once your column has been moved, you can click “Apply”.

You’ll see this “Output” screen appear. Here you can see that my table was successfully altered. If there are errors, it’ll let you know, and there will be A LOT of red (trust me, I saw tons of red prior to writing this post).

Bonus points, you can always find the Data Definition Language (DDL) in the DDL option (read up on this and the other types of SQL statements h ere).

As I see it, it looks like everything since the inception of this table has been recorded. I would imagine you could take this and build some sort of automation/orchestration script with it (along with the DDL from the other tables too).

Sample Code

Table as a Primary Key
```
CREATE TABLE ADMIN.RESTAURANTS
    (
     OBJECTID           NUMBER ,
     HSISID             NUMBER ,
     NAME               VARCHAR2 (4000) ,
     ADDRESS1           VARCHAR2 (4000) ,
     ADDRESS2           VARCHAR2 (4000) ,
     CITY               VARCHAR2 (4000) ,
     STATE              VARCHAR2 (4000) ,
     POSTALCODE         VARCHAR2 (4000) ,
     PHONENUMBER        VARCHAR2 (4000) ,
     RESTAURANTOPENDATE DATE ,
     FACILITYTYPE       VARCHAR2 (4000) ,
     PERMITID           NUMBER ,
     X                  NUMBER ,
     Y                  NUMBER ,
     GEOCODESTATUS      VARCHAR2 (4000)
    )
    TABLESPACE DATA
    LOGGING
;


CREATE UNIQUE INDEX ADMIN.RESTAURANTS_PK ON ADMIN.RESTAURANTS
    (
     HSISID ASC
    )
    TABLESPACE DATA
    LOGGING
;

ALTER TABLE ADMIN.RESTAURANTS
    ADD CONSTRAINT RESTAURANTS_PK PRIMARY KEY ( HSISID )
    USING INDEX ADMIN.RESTAURANTS_PK ;
```
That is literally all did to set this up. Very straightforward, next I’ll walk through how to set up Foreign keys. Then I’ll show you what it looks like in the Data Modeler so you can visually see the newly-established relationships of the tables.

Establishing a Foreign Key

We’re still in the SQL worksheet (found in Database Actions). Both Inspections and Violations tables need a Foreign key; I’ll demonstrate with Inspections.

Right-click on the table and select “Edit”, just like I did when establishing a Primary Key. Next, navigate to the “Foreign Keys” option in the Table Properties.

It’ll be empty, but you’ll want to click the
“+” key (see the arrow). You’ll see “NEW_FK_1” appear under the Foreign Key table. If you click on that you can change the name to whatever your heart desires.

I then changed the Foreign Key name to something that I could remember (and something that would make sense at a later date); “Inspections_FK”. I then selected “HSISID” as the Local Column.

And automatically, the schema recognizes the Primary Key I previously established in the Restaurants table. I didn’t do that, that was all done for me automatically! Very cool.

Part 1

Part 2

After I click “Apply” you’ll see the output from this change. I can then return to the Foreign Keys option and voilà, the Foreign Key name has been changed. I’ll proceed to do the same to my “Violations” table as well.

Sample Code

Table as a Foreign Key
```
CREATE TABLE ADMIN.INSPECTIONS
    (
     OBJECTID    NUMBER ,
     HSISID      NUMBER ,
     SCORE       NUMBER ,
     DATE_       DATE ,
     DESCRIPTION VARCHAR2 (4000) ,
     TYPE        VARCHAR2 (4000) ,
     INSPECTOR   VARCHAR2 (4000) ,
     PERMITID    NUMBER
    )
    TABLESPACE DATA
    LOGGING
;

ALTER TABLE ADMIN.INSPECTIONS
    ADD CONSTRAINT INSPECTIONS_FK FOREIGN KEY
    (
     HSISID
    )
    REFERENCES ADMIN.RESTAURANTS ( HSISID )
    ON DELETE CASCADE
    NOT DEFERRABLE
;
```
Data Modeler Primer

This isn’t a “How-to” on the Data Modeler (Documentation here though), but rather just me taking a minute to share how you can visually see the relationships between tables. It definitely helped me better understand why I needed to establish Primary and Foreign Keys.

Andiamo!

From the Database Actions Launchpad, select “Data Modeler”.

Once there, you’ll see two drop-down menus. You’ll see your current Schema (Admin for me, in this case). In the second drop-down menu, you’ll see a list of available “Objects”. I’ll want to make sure that I have “Tables” selected.

You can drag these over one at a time, or select them all and drag all at once. They’ll appear in the Diagram Editor, with the relationships already included (since I already set up the Primary and Foreign Keys).

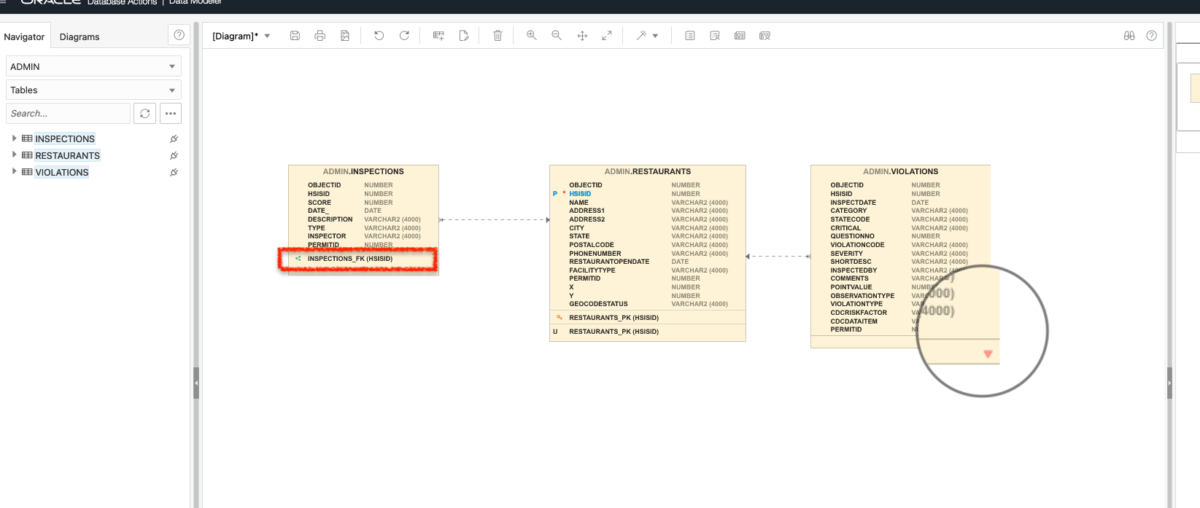

Expand these diagrams and you’ll reveal additional information. In this image, I’ve expanded the Inspections table to reveal Foreign Key details. I’ll do the same by expanding the bottom of the Violations table to reveal its Foreign Key. That little red arrow signifies that there is additional information hidden.

Okay, but what is this?

What we are looking at is a visual representation of the relationships between these tables. Everything is “linked” through the HSISID. My interpretation of this is that everything begins with the Restaurant table, and then the other two tables act as subordinates.

For a single Restaurant (which has a unique HSISID) there are many entries in both Inspections and Violations that use the HSISID repeatedly. In those cases, that HSISID is no longer unique. It is still important, necessary information.

And now that everything is linked, I’ll want to create a single query (SQL presumably) that when executed will return all relevant information from a single entry in the Restaurant table with all associated (HSISID) entries from the Inspections and Violations table, nested underneath it.

Clear as mud? Good. Hope this helps more than it hurts.

Now what

Next I’ll need to come up with something (in SQL perhaps) that I believe I’ll use in tandem with ORDS. From there I’ll work on building the html portion of this python + flask application so that the search is more intuitive (to the user) and elegant (for the Autonomous Database). Believe it or not, but it took about a week to wrap my head around all this key business. Needless to say, I’m slightly behind schedule. But expect more updates as I progress.

Hope you learned something.

Find me

HMU on:
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
March 24, 2022
Project Overview: python – flask – ORDS – Autonomous Database
Update

For the past week and a half I’ve been immersed in learning how python and flask interact with each other so a developer can create a quick/crude web application. I’ve also spent time becoming more familiar with virtual environments (as they pertain to python + flask), jinja, and WTForms (I’m sure I’m forgetting other stuff too). But if you are like me (circa two weeks ago), then most of what I just wrote means nothing. But that’s okay, you have to start somewhere.

I’m trying to learn all I can because I want to share my ideas (and code) with the Oracle community in the hopes that it will lead to more creative and innovative ways to connect with our Autonomous Databases.

If you recall, as of this writing, I currently have my Autonomous Database (ADB) set up; and my three tables are REST enabled (with the help of ORDS). I also have a newly created “appdev” user (for accessing the database remotely).

And what I’m attempting to do is develop a very basic web/mobile-friendly application in python. An application that will transform the JSON (provided via ORDS) coming from the ADB, into a readable and helpful tool.

Which prompts the first question: how do I intend to do this?

“I think the best way to tell the story is by starting at the end, briefly, then going back to the beginning, and then periodically returning to the end, maybe giving different characters’ perspectives throughout. Just to give it a bit of dynamism, otherwise, it’s just sort of a linear story.“
David Ershon (as portrayed by the legendary Steve Coogan in the critically acclaimed 2010 film The Other Guys

First off, its ridiculously easy to REST enable tables in your ADB. Simple mouse clicks really, take a look:

https://twitter.com/chrishoina/status/1499829222315118596

Now that I’ve REST enabled my tables, I can take the provided URL (see below in the image) and paste it in a separate browser window. Here you see the default is that the first 25 entries in the target table are returned.

Of course, with some manipulation I can do much more than what is seen here. But the point is that everything works, thanks to ORDS (huge time saver). Although, we still need to clean up the presentation (or what a typical user might expect).

The actual application

So what I’d like to do is take this…word salad, and clean it up a bit; make it more presentable. Up until now I haven’t stumbled across anything that takes our JSON (via ORDS) and presents it in such a way using python + flask. I think it would be really neat, and a good chance for me to contribute something more than just funny memes and GIFs.

If you recall, I have three datasets:
1. Wake County Restaurants
2. Restaurant Health Code Inspections
3. Restaurant Inspection Violations
All of which share the same primary key (a restaurant ID). So I thought I would produce something that would use all three of these tables in some combination.
```
SHOUT OUT: Thanks to Wake County, NC for providing people with these openly-available datasets.
```
The direction I’m headed is to develop a Minimum Viable Product (MVP), share the code via GitHub, then move onto the next ORDS-inspired project! After spending a few days researching and learning, I’ve cobbled together what I think might work:

A simple mock-up of what this python, flask, autonomous database + ORDS app might look like.

This needs explanation. Let me discuss what is going on here.
1. A user would begin on the landing page (name yet to be determined). This page of course is displayed in html.
2. Next a user would enter in a restaurant of interest (I’ll have to begin with Wake County, NC as that is all I have access to at the moment). From there the python application would use ORDS to request information from my autonomous database.
3. Skipping several steps for brevity, eventually this information would then be transmitted back to the user (in html).
```
NOTE: I intend to follow-up with subsequent posts detailing my development progress. So this should become less opaque as we near the finish line!
```
More explanation

Right, so what are flask, jinja, and WTForms?
- As I understand it, Flask is a web framework that allows python developers to more easily create web applications.
- Jinja. Apparently writing html is annoying, so jinja is an “engine” that allows developers to write in python-like code and have that code “transformed” into html. Seems like it makes it that much easier to stay in your native language (python in this case).
- WTForms is used for form “input handling and validation”. My interpretation of this is that python developers aren’t expected to know how to communicate with databases. Much like they wouldn’t be expected to be fluent in html. So it is a way of extended python to handle requests to the ADB.
Learning resources

No single person is an island. Having said that, what follows (in no specific order) are resources that have helped me get to this level of understanding/comprehension. Maybe they’ll help you too.

I’m more of a visual and practical learner, so I’ve primarily been working through tutorials on YouTube and LinkedIn Learning. I found a course on LinkedIn Learning; one that I actually did.

Meanwhile on YouTube, I did a lot of pausing/reviewing/rewinding so I could figure out how everything works together. Luckily, python and flask seem to be very formulaic; not too dissimilar to COBOL.

LinkedIn Learning

Full Stack Web Development with Flask (LinkedIn Learning)
```
Note: I did sections 1-4. When I got to section 5, I passively followed along for about ¾ of the section, but then reached diminishing returns. I skipped section 6; twas irrelevant.
```
YouTube

The two channels I found helpful:
- Codemy.com (channel) – you’ll want to use the keywords “flask Fridays”; they go as far back as 2021 and are still on-going
- Corey Schafer (playlist) – a great start-to-finish series for building a flask/python-based web application (although not Autonomous Database + ORDS specific)
Mac set-up

Bookmark this guide if you want to set up your Mac for anything development-related. In my case the following sections were extremely important for this project:
- xCode (for some reason doesn’t come preinstalled on Mac)
- Homebrew
- Visual Studio Code
- Python, along with:
  - Pip
  - Virtualenv (where I learned more about virtual environments)
Up next

Next up, I’ll be taking what I’ve learned so far and applying it to this project. Since a user wouldn’t log in, update, or modify anything in this application, the complexity should be low.

That isn’t to say it won’t have its challenges. But in a couple weeks I hope to have the front end connected (via ORDS) to the ADB. I’ve got a good start on what the landing page might look like. And of course once it is all polished up and properly commented, I’ll be sure to share the code.

Screen shot of what the landing page currently looks like; running locally in a virtual environment (venv). Next up is to add a search bar and then connect to my Autonomous Database via ORDS.

The dig continues

Time to hit the books.

If you want to learn more about ORDS check out these resources.
- Oracle REST Data Services (ORDS) documentation
- ORDS forum
And as always, you can find me here:
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
March 14, 2022
Create a user in Oracle Autonomous Database [for Dummies]
An OCI user does not ≠ ADB user

Creating an additional user in your Oracle Cloud Infrastructure (OCI) is not the same thing as creating an additional user in your Autonomous Database (ADB). I spent about two days (on and off) last week, wrapping my head around this. Maybe you knew this…I did not.
Chris Hoina – 2022

If however, you want to create an additional OCI user; one that would be able to access various resources in OCI, then please bookmark this page. This is all you need to get started.

However, you may not even need to create this additional user (as was the case with me). While I followed the steps in that documentation (very simple/straightforward actually), it wasn’t till after I finished, did I realize that doing it was completely unnecessary. What I was really trying to do was create a new database user, not an OCI user. The steps are different, simpler.

Federations

Another area that I got really hung up was with “Federations”. This was a relatively new concept for me. And I’m not sure if I should even do a deep dive on how Federations work. However, let it be known, if I receive even one (legitimate) comment on this subject, I will put together a treatise on Federations in OCI.

It took me about a day and a half to educate myself on how Federations and Identity Providers work in OCI. So, if you are reading this, and you think you’d benefit from a standalone article, then let me know. Otherwise, this page and this page are both very helpful for learning more about Federations in OCI.

Are you me?

If so, then you are acting as an administrator in your Always Free OCI account, as well as the database administrator. Being both is confusing for me, and maybe it is for you too. Since I don’t consider myself a traditional user (I’m blurring the lines when it comes to the different roles), I’m tasked with managing my OCI tenancy and also setting up my development environment. All this so I can begin to work on some applications/proofs of concepts (POCs) for interacting with my Autonomous Database via ORDS (Oracle REST Database Services aka our REST APIs).

Don’t be like me and allow yourself to get too weighed down with all the technical jargon thrown your way. Naturally, our docs read like they are geared toward the System or Database Administrator. And this makes sense; remember when you are in your tenancy you’re the de-facto admin for everything. At a larger organization/enterprise a developer would probably never do any of this setup. You’d just sign in to the database directly or connect via a command line.

Workflow for the “Every Person”

But for me (with my limited experience), the workflow looks something like this:

Start here

Sign-up for an Oracle Cloud Account. You’ll be provided a Cloud Account Name* and credentials.

*You’ll also hear this account being referred to as your Tenancy name (you can modify the name later if you want).
Next, create an Autonomous Database and create the “ADMIN” credentials* for said database. You can see how to do that in Lab 1 of this workshop.

REMINDER: This administrator is different that the OCI Tenancy administrator.
Add a new user by:

Navigating to your Autonomous Database under “Oracle Database”. It might be in your recently viewed.

After you click the database, you’ll see this screen. Click “Database Actions”. You’ll link out to the Database Actions dashboard.

Select the Database Users option in the Administration section.

Select the “Create User” option.
At a minimum, you’ll want to enable “Web Access” for this user. This will automatically grant two roles for the user:

CONNECT

RESOURCE

Both are needed for the developer though.
If you want to take a look at the different roles available, click this tab. Scrolling through, you can see the CONNECT and RESOURCE roles are checked.

HINT: You can always go back and edit the roles if more roles need to be granted. Both are needed for the developer though.
Finish (kind of)

Once complete, you’ll see a URL in that user’s newly-created tile. This URL will link you out to a login page, for accessing the Database Actions console. Since you are the only user, you’ll just want to document the URL. Otherwise, as the admin, I’m assuming you’d share this with the respective recipient.

Next Up

From here on out, I’ll do all my development work with this account (I called mine “appdev”), to mimic what a typical user might encounter in a practical setting.

Right now, I’ m wrapping up a python + flask + database course on LinkedIn Learning. So far, its been pretty informative. If you are interested, you can take a look as well (to see the direction I’m headed). My goal will be to use the templates in this course as a resource for connecting to my database, but with ORDS.

I hope to have something small in the next week or so. And I’ll be sharing here, and on my GitHub as well. So stay tuned.

Helpful resources

What I did here was very simplified, a distillation for creating a new user in your Autonomous Database. But I’ll include some of the resources that helped get me to this level of understanding:
- Autonomous Database Workshop (I also mentioned this earlier in the post)
- Oracle Cloud Infrastructure Foundations (I’ve completed this, and can confirm it is a helpful course)
- Python + Flask Web App course (I’m currently enrolled, so far it has been a great experience)
- Oracle REST Data Services (ORDS) documentation
- ORDS forum
Find me

And that’s it for now. But if you want to follow along then check me out at these places…
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
March 1, 2022
Table Prep: Data loads and time zones
Next episode

With my Autonomous Database up and running,I needed to find some data to upload. After some quiet reflection, I decided upon three datasets that should be plenty fun.
A bit of context; I currently live in Wake County, North Carolina. And it turns out that we’ve been very progressive with providing open, accessible data to our citizens. I really wanted to do something with food, so I was surprised when I found the following three datasets (among the nearly 300 available):

Restaurants in Wake County

Restaurant Food Inspections/Grades

Restaurant Food Inspection Violation History
Always read the docs

Upon reading the documentation, I discovered that these datasets could be all connected through their HSISID* Permit ID fields. Which should come in handy later as it could make for some very interesting (if not amusing) revelations.
```
*I’m not sure of the acronym, but the documentation defines the HSISID as a, “State code identifying the restaurant (also the primary key to identify the restaurant).”
```
To the data loading

I’m sticking with the Oracle Database Actions* web-based interface for now.
```
*Oracle Database Actions was previously known as Oracle SQL Developer Web.
```
The Database Actions Launchpad offers several actions for users, including development, data loading, monitoring, and administration.

And from what I learned in the Autonomous Database workshop, there are two ways to load data into your database (there may be other methods; mea culpa if so):
1. SQL worksheet (found in the Development section, of your launchpad)
2. Data Load Tool (found in the Data Tools section)
And I opted for the SQL worksheet method since I need to practice and learn this method regardless.

Obstacles

After choosing my method of data loading, I encountered some obstacles. With no regard for best practices, I proceeded to load all three datasets into my Autonomous Database only to discover two glaring issues.

First

Unfortunately, in my restaurant “violations” table, I encountered two rows that failed to load.

ORA-12899 error in Oracle Autonomous Database on Oracle Cloud Infrastructure.

These values were loaded as a VARCHAR2 datatype, which, by default, allows for a maximum byte size of 4000 bytes. Since these rows exceeded 4000 bytes (in that specific column) they failed. Fortunately, it was easy to increase the bytes to 10,000.

While you can increase it to 32,767 bytes, that is overboard. VARCHAR2 data types can have their max string sizes set to ‘STANDARD’ or ‘EXTENDED’ (i.e 4000 bytes vs 32,767 bytes). I’m assuming the Autonomous Database is set to EXTENDED by default, since I was able to increase this column, and re-upload with zero failed rows. You can read up on VARCHAR2 data types here.

Second

The second obstacle I ran into, took me about a day (on and off) to figure out. The dates in all three of these tables were constructed like this:

Adjusting for the TIMESTAMPS in the Oracle Autonomous Database.

At first glance, I thought I was looking at a time zone offset. Dates were either 04:00:00+00 hrs or 05:00:00+00 hrs; possibly due to daylight savings time. This seemed like a reasonable assumption since the early-November — mid-March dates were an hour later than the mid-March — early-November dates (i.e., UTC-4hrs in Winter, UTC-5hrs all else).

My first thought was to modify the affected columns with something like this parameter:
```
TIMESTAMP [(fractional_seconds_precision)] WITH TIME ZONE
```
or with…
```
TIMESTAMP '1997-01-31 09:26:56.66 +02:00'
```
But, I’d never seen this date/time stamp before (the ‘esriFieldTypeDate’), so I had to investigate before I did anything (also, I’ve no idea how to update a column with a parameter like this, so it would have added additional time).

Turns out this data originates from ArcGIS Online. This field data type maps directly to Oracle’s ‘TIMESTAMP’ data type. Seen here in the documentation:

In the ArcGIS documentation, the ‘esriFieldTypeDate’ appears to map to Oracle’s ‘TIMESTAMP’ datatype.

I later tinkered with an API Explorer on the Wake County datasets site and reviewed a sample JSON response for this data set. The response also confirmed the field type:

Wake County has an API Explorer on its datasets site, where you can sample a query to review the JSON that is returned.

It’s funny because, after all this hunting, it looks like I won’t be able to include time zones anyways. It’s somewhat inconsequential as I’m only interested in Wake County, but for some that could be unnerving.

I wish I could say that I came up with a cool Python script to automate the cleaning of these columns (I would have had to do this for all three of my .CSV files), but I did not. It would have taken me an afternoon or longer to work through this since I haven’t toyed with .CSV Reader (in the Python standard library), Pandas, or NumPy in quite some time. In the end, (and it pains me to say this, embarrassingly, really), I used the ‘Find + Replace’ feature in Numbers to remove the time/time zone portion of the dates.

I’m pathetic, I know. But the idea of creating a dedicated Python script does seem like a fun weekend project. Who knows, maybe I’ll post to GitHub. Regardless, my Autonomous Database is clean and primed for ORDS.

In closing

In closing

My advice is as such:

Always inspect your data before you do anything major, always make sure you understand the inputs and the resultant outputs of the data loading process, and always refer to the documentation FIRST so you can understand how data is being recorded, coded, displayed, etc..
Chris Hoina, 2022

Oh, and it wouldn’t hurt to think about how you might use this data in the future. I’m guessing that could help you avoid a lot of rework (i.e. technical debt).

Take me as an example. Since I’m focused on ORDS and REST enabling my database, I may want to consider things like:
- What am I going to expose (via REST APIs)? or
- What fields might the presentation layer of my application include?
In my case, a lot of this data will lay dormant, as I might choose to focus on only a few key fields. Of course, anything I create will be simple and basic. But that might not be the case for you.
I’m off to REST…enable this database now, but in the meantime, if you want to learn more about ORDS, check out:

Docs

Forum
Find me

And as always, catch me on:
- Twitter
- YouTube
- GitHub
- Discord
- LinkedIn
- Stack Overflow
- Medium
February 16, 2022
An Oracle Autonomous Database workshop: here is what I learnt
Pop Quiznos

Recently, I traveled to Colorado. While flying, I finished up an Autonomous Database (ADB) workshop. What I’m saying is…I was in the clouds, on the cloud.

In my new new role, much of my work will be focused on Oracle’s REST Data Services (ORDS). But I’m starting out with the ADB.

After completing the workshop, I thought I’d share initial impressions and lessons learned. But first…a crash course on our Cloud Free Tier accounts and Always Free cloud services. Both are relevant for this workshop.

Oracle Cloud Free Tier

When you sign up for an Oracle Cloud Infrastructure (OCI) account, you are automatically entitled to Always Free services. You’re also given a 30-day/$300 USD worth of free credits trial to use on all eligible OCI services (30 days or $300, whichever comes first). But the Always Free services are available for an unlimited period. This workshop uses Always Free services (lucky you).

Always Free

Errthang you get with Always Free…we are most concerned with the database options though.

On Databases

Credits can be used on many items (see above). And that includes various databases. In the workshop you get to provision an Autonomous Data Warehouse (we’re still Always Free).

The Autonomous Database (ADB)

Overview

The ADB calls OCI home. It’s a fully managed, pre-configured database environment. Four workload types are available:
- Autonomous Transaction Processing
- Autonomous Data Warehouse
- Autonomous JSON Database
- Oracle APEX Application Development
```
NOTE: Always Free entitles you to two of the above databases; each with 1 OCPU* and 20 GB storage. There is also an option to choose a noSQL Database with 133 million reads/writes per month, 25 GB storage per table (up to 3 tables).
```
```
ALSO: An “OCPU” is an Oracle Compute Unit. 1 OCPU on the x86 (AMD/Intel) architecture is equivalent to 2 virtual processor cores (vCPUs). Whereas on the ARM architecture, the ratio is 1:1 (i.e., 1 OCPU = 1 vCPU).
```
Automation

Zero hardware configuration/management or software installation/configuration is required! Once your database is created, nearly everything is automated:
- Backups
- Patching
- Upgrading
- Performance tuning
You’re a Database Administrator (DBA) and you didn’t even know it!

Scaling

The ADB shines here. CPU and storage can be scaled automatically. Auto-scaling can automatically add more CPU cores to the base number of cores during periods of high demand, and then automatically reduce the number of cores back to the base number as demand decreases (auto-scaling also allows up to three times the current base number of CPU cores at any time).
DISCLAIMER: Auto-scaling isn’t an Always Free cloud service, but it’s still cool and worth talking about. However, should you choose to upgrade in the future, it’s very easy to do:
To the Workshop!

The FREE workshop consists of five labs (and an optional sixth):
- Lab 1: Provision an Autonomous Database
- Lab 2: Work with Free Sample Data Sets
- Lab 3: Load Data
- Lab 4: Query External Data
- Lab 5: Visualize Your Data
Once you’ve requested an Oracle Cloud account (everything can be done with the Free Tier option), you’ll then create an Autonomous Database. The instructions for requesting your account are simple and can be found here (but also on the workshop’s landing page).

Lab 1

Just two steps here, simple. Everything is done through the Oracle Cloud dashboard. My two takeaways:
1. WRITE DOWN all your login/credential information! I hadn’t considered that as an Oracle employee I’d have more than one login (it can be confusing). Not to mention later, you’ll be creating an ADMIN password for the actual database (separate from your tenancy credentials).
2. Initial Database configuration. I really appreciated that when you first configure your Autonomous Database, you are automatically provided 1 CPU and 20 GB of storage. But should you require more CPU or storage, everything can be adjusted with simple drop-down menus. Is nice that a user (like a developer or non-System/Database Administrator role) can provision their own free playground in a matter of minutes.
Lab 2

Lab 2 reinforces how simple this workshop is. At this point, I’m still in the web browser. But of course, you could use the desktop option, Oracle SQL Developer.
1. Things seemed fast. And that is saying something, because for part of this workshop (Lab 3 actually), I was in the air flying from Denver, Colorado to Raleigh, North Carolina using the airline wi-fi and objects were actually loading into their OCI buckets (I write about this later).
2. Second takeaway was caching. When possible, the autonomous database caches query results. Meaning, for subsequent queries, results are just…there. That is a big deal to me, because in my previous role I was a Product Manager for an application performance tool. And there are a couple of things that just absolutely kill an application’s response time and/or throughput:
- CPU intensive tasks (often repetitive ones)
- I/O processes
TL;DR – we like fast. Fast is good 🙂

Lab 3

You’re creating a “Bucket” in the OCI and then loading Objects (approximately 45 floppy discs worth of .CSV and .DAT files) into that Bucket. Again, this is all point and click, and done in-browser. There is a wizard that guides you through everything. For someone who isn’t familiar with System or Database Administration, this was helpful and it made approaching “infrastructure” so much more accessible and seemingly less daunting.

I should remind that this might not be your typical workflow. You might not create a Bucket and then load Objects every time. But you will still need a URI, authorization token, and credentials to load this data into the specified database.

This lab was still a good exercise even for the non-Systems or Database Administrator. Maybe you’re a Developer or Business Intelligence Analyst. I don’t suspect many will perform all these tasks. But its important to understand how teams/roles/individual members are connected (from end-to-end).
One final thing I appreciated about this lab, was that there were two options for loading data into respective locations:

the DATA LOAD tools option from within the Database Actions dashboard, or
the PL/SQL package (DBMS_CLOUD)
Lab 4

Up until this point I felt like I was an active participant. But here I felt like I was cheating. he code snippets you are provided allow you to create an external table directly from your cloud object store (excerpt of the code; click the image to go to our GitHub).
```
/* Specify the URL that you copied from your files in OCI Object Storage in the define base_URL line below*/

set define on
/* Specify the URL that you copied from your files in OCI Object Storage in the define base_URL line below*/

set define on
define &file_uri_base = '<bucket URI>'

begin
 dbms_cloud.create_external_table(
    table_name =>'CHANNELS_EXT',
    credential_name =>'OBJ_STORE_CRED',
    file_uri_list =>'&file_uri_base/chan_v3.dat',
    format => json_object('ignoremissingcolumns' value 'true', 'removequotes' value 'true'),
    column_list => 'CHANNEL_ID NUMBER,
        CHANNEL_DESC VARCHAR2(20),
        CHANNEL_CLASS VARCHAR2(20),
        CHANNEL_CLASS_ID NUMBER,
        CHANNEL_TOTAL VARCHAR2(13),
        CHANNEL_TOTAL_ID NUMBER'
 );

 dbms_cloud.create_external_table(
    table_name =>'COUNTRIES_EXT',
    credential_name =>'OBJ_STORE_CRED',
    file_uri_list =>'&file_uri_base/coun_v3.dat',
    format => json_object('ignoremissingcolumns' value 'true', 'removequotes' value 'true'),
    column_list => 'COUNTRY_ID NUMBER ,
        COUNTRY_ISO_CODE CHAR(2) ,
        COUNTRY_NAME VARCHAR2(40) ,
        COUNTRY_SUBREGION VARCHAR2(30) ,
        COUNTRY_SUBREGION_ID NUMBER ,
        COUNTRY_REGION VARCHAR2(20) ,
        COUNTRY_REGION_ID NUMBER ,
        COUNTRY_TOTAL VARCHAR2(11) ,
        COUNTRY_TOTAL_ID NUMBER ,
        COUNTRY_NAME_HIST VARCHAR2(40)'
 );
```
The code snippets you are provided allow you to create an external table directly from your cloud object store. Now you can then query from that external table, outside of the database. Without that code snippet, I would have struggled to do this on my own (or at least, not without some research). That is more of a “me” problem though.

I appreciate that this method of querying is available, especially if you are only concerned with a small subset of your data. Keeping this data closer to you can certainly make subsequent requests quicker.

Lab 5

Here we try our hand at business intelligence. You begin by downloading Oracle Analytics Desktop. The tool reminded me of Tableau or one of the SAS data visualization products that are available.
```
Consider this: Biases aside, Oracle Analytics Desktop is free. And you can connect to your database within a matter of minutes.

If its forecasting and visualizations you are looking for, this thing looks plenty powerful.
```
Much like before, everything is GUI-based. But you can also do much of the set-up in Oracle’s SQL Developer, or from within the browser. With some provided SQL, I defined a table from the data I imported in a previous Lab. From there you get some practice establishing a secure connection to your database, and then import that table into Oracle Analytics Desktop.

I don’t know if I should spend too much time here, because currently my focus isn’t data analysis/business intelligence. But once you establish a secure connection to your database, you can easily drop and drag data into the tool’s visualization pane and later manipulate the visualizations in countless ways.

My biggest takeaway here, is that once you have created a wallet from within your OCI dashboard, and established a connection to your data warehouse (from within Oracle’s Analytics Desktop), things are very intuitive.

Everything is drag and drop. And since you’ll pre-define and save a subset of your data, you can’t break anything, you can just start over by pulling down subsequent data. Truthfully, if your focus isn’t Business Intelligence, then you can (and some are going to hate this) skim this lab to get the gist.

The End

There is a totally optional Lab 6, where you export your newly created project to a .DVA file. But I skimmed that and got the idea.

Like I mentioned before, this content will become increasingly more technical. I’ll be doing some exploring with the APIs in ORDS. And I’ll see what I can do with flask + python + ORDS. I’ve found some good references on Github and of course I’ll be share the [heavily commented] code here and on Github too!

And as always, you can find me here:
Until next time. Love, peace, and chicken grease.
February 7, 2022
Hello World 🙂
```
WARNING: Turn back now.  You have been warned.
```
Who am I?

I’m Chris Hoina. Senior Product Manager at Oracle as (still not sure why they hired me, most likely a clerical error).

I’m a recent “Big Blue” defector; at IBM for nearly three years. There I worked in IBM Z (the mainframe, Big Iron, or Z). Specifically, I was a Product Manager for three different pieces of software focused on application development and delivery. It was a great first step. I’m thankful for my time there and everything I learned (so much brain trust). But a challenging, new opportunity presented itself, and I couldn’t say no.

Now, I’ll be focused on Oracle’s REST Data Services (ORDS). Actually, I’ll be heavily involved what you can do with ORDS (aka Database Management REST APIs) and all the ways you can interact with your Oracle databases.

“These are my confessions…”

Up until this point, my experiences with databases and transaction processing have largely been in Db2, CICS, IMS, and Adabas. And my experiences with SQL have been working with SQL Stored Procedures (both Native and External). But in this new role, I’ll be using various application frameworks to create some simple/quick proofs of concept for talking to your database via ORDS.

Now what?

Today, I’m intrigued by python and the flask framework, so I think I’ll begin there. I’ve seen a lot of good reference material so it should be easy going. But first, part of my work here will be to fully immerse myself in the Oracle ecosystem and learn as much as I can before I begin pumping out more technical content.
```
DISCLAIMER: I’m by no means an expert, so this should be a fun learning experience for us all. I’m hoping folks reading this will appreciate my self-deprecating humor and suffering. Regardless, enjoy the ride.
```
To start, I wanted to do a little exploration. I’m sure exploration will be ongoing, but I may not always post about it, because this won’t be my focus moving forward (and expectations for me are so low right now, that this is probably the only time I can get away with something like this).

And my first foray into the Oracle Cloud Infrastructure (OCI) ecosystem was with this “Load and analyze data in Autonomous Database” workshop. The tutorial says it takes about 90 mins, but it kept me occupied for an entire afternoon. You can find all the available workshops here. To date, there are 291 available!

I came away with some initial impressions and takeaways from the workshop. And I thought they might be helpful or interesting for some. So, if you care to learn more, then stay tuned as I’ll be posting my write-up first thing next week (I’ll be sure to update and link here too).

Fin

Want to stay up to date with my progress? Then…

“Would you be mine, could you be mine…Won’t you be my neighbor?”
Mr. Rogers

Find me on:
Twitter
YouTube
GitHub
Discord
Stack Overflow
Medium
LinkedIn
January 31, 2022
